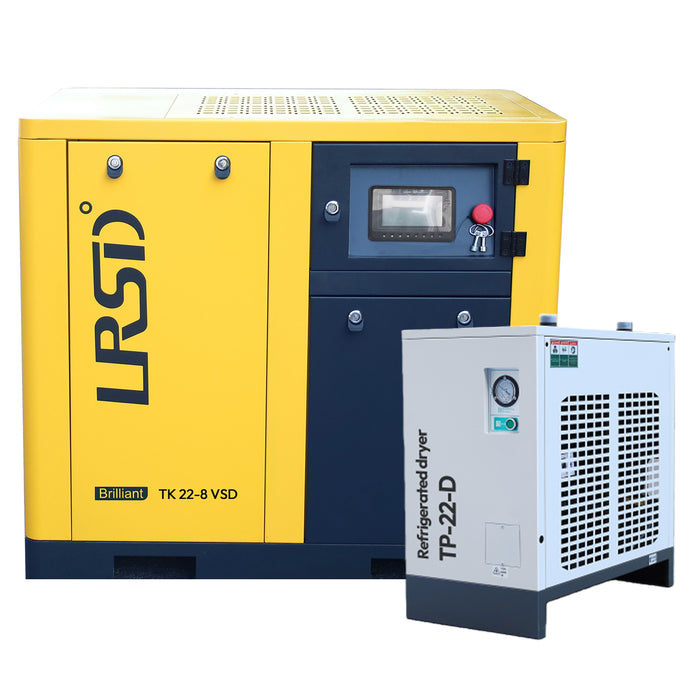

30Hp 3Ph 460V 125PSI Screw Air Compressor with 1 Ph Refrigerated Air Dryer
Original price
$9,600.00
-
Original price
$9,600.00
Original price
$9,600.00
$9,600.00
-
$9,600.00
Current price
$9,600.00
-

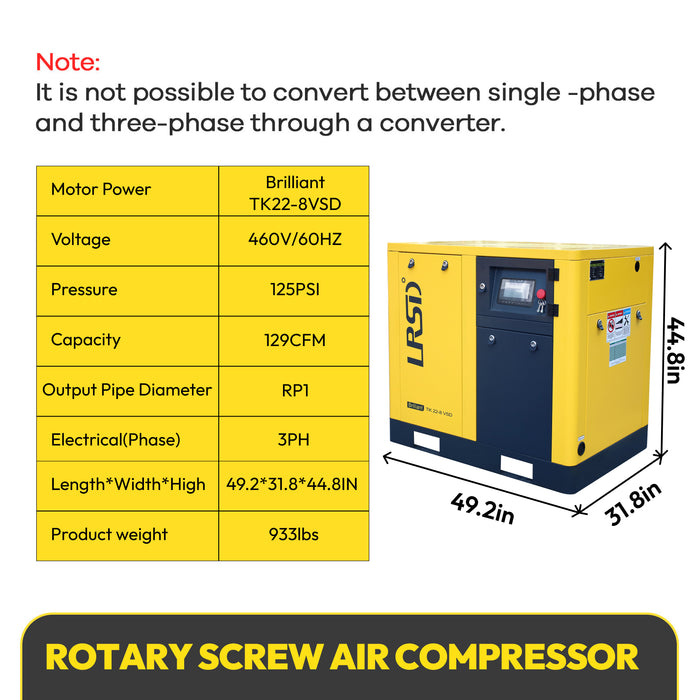

****Technical parameters
Model: TK22-8 VSD
Power: 30 hp (22KW)
Exhaust pressure: 125psi
Exhaust volume: 129CFM
Noise level: 70 dB (A)
Rated speed: 3528 r／min
Output Pipe Diameter: NPT 1"
Voltage: 460V/ 60Hz
Phase - Electrical: 3 phase
Packing size: 53 *36 *50 in
Packing weight: 1043 lbs

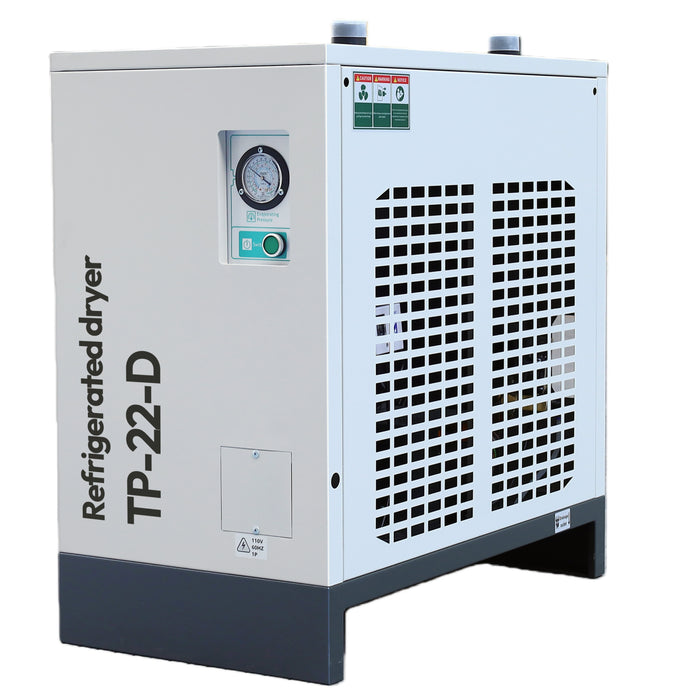

**** Refrigerated Air DryerModel : TP-22-DAir Capacity : 141CFMElectrical : 1 PhaseWorking Operating pressure : 102-232 PSICooling : By AirPower supply : 220V/60HzRunning current : 3ARefrigerant type : R410AInstalled power : 0.7 KWAmbient temperature : 25-45 °C
Intake air temperature : 35-60°CDimension : 23.64 *20.49 *29.55 InchWeight : 118.8 lbs
