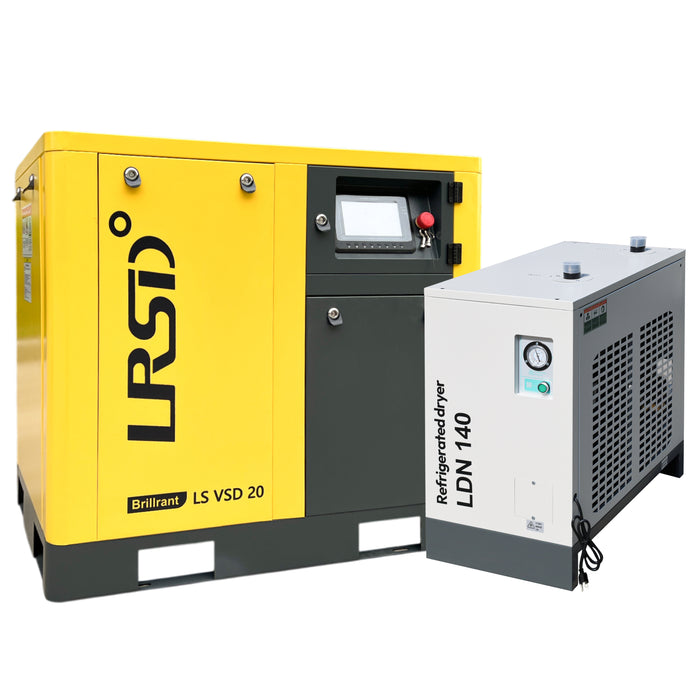

LRSD 20HP 15KW VSD Rotary Screw Air Compressor with Refrigerated Air Dryer| 75 CFM @ 145 PSI | 460V 3-Phase 60Hz | RP3/4" | (LSVSD 20)

20HP VSD Rotary Screw Air Compressor

1. Powerful & Efficient Performance
20HP/15KW industrial-grade motor delivers reliable power
75CFM airflow @145PSI for consistent pressure
480V/3-Phase operation (⚠️ Note: Cannot be converted to single-phase)

2. Lower Maintenance, Higher Uptime
Fewer breakdowns = less downtime & lower repair costs

3. Energy Saving Effect
The variable frequency air compressor can adjust the motor speed according to actual needs, thereby accurately controlling the output of the compressor and avoiding unnecessary energy waste. When lightly loaded or unloaded, it can automatically reduce the speed and reduce power consumption

4. Advanced Cooling System
Maintains optimal temperatures for longer lifespan
Prevents overheating even in continuous industrial use

5. Built for Demanding Applications
✔ Automotive repair shops
✔ Small sandblasting operations
✔ Manufacturing & fabrication

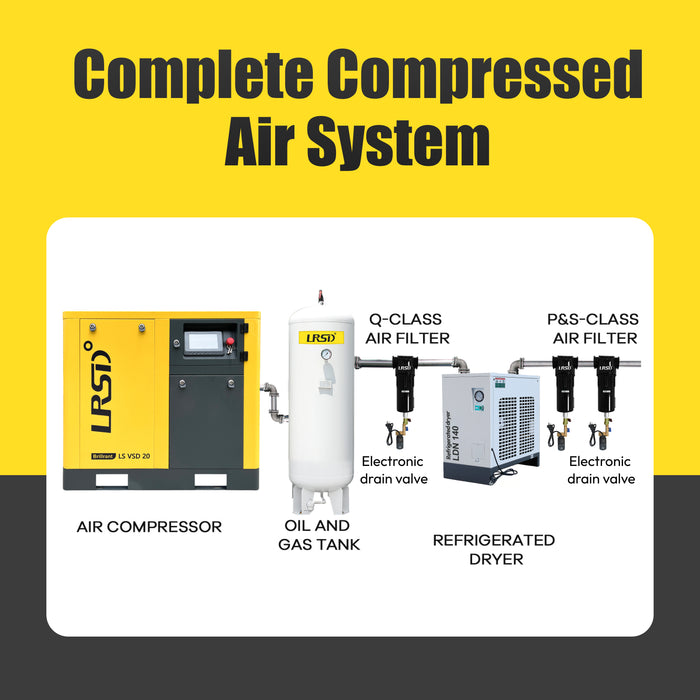

Refrigerated Air Dryer
Model : LDN 140
Air Capacity : 123CFM-134CFM
Electrical : 1 Phase
Working Operating pressure : 102-145 PSI
Cooling : By Air
Air Inlet /Outlet Size: 1" External Threads
Inlet temperature : ≤113 °F
Power supply : 110V/60Hz
Refrigerant type : R410a
Installed power : 0.83 KW
Dimension : 33 *17 *33 Inch
Weight : 105.8 lb
Warranty : 1 Year
